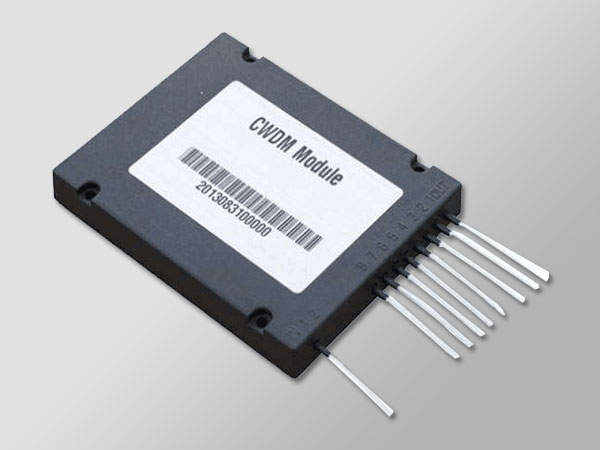

CWDM

产品特点
低插入损耗           Low insertion loss
低偏振相关损耗       Low polarization dependent loss
高波长隔离度         High wavelength isolation
环境稳定性好         High environmental evenness
CWDM能有效节省光纤资源和组网成本,它解决了光纤短缺和多业务透明传输两个问题,主要应用在城域网汇聚和接入层,并且可在短时间建设网络并开展业务。由于CWDM具有低成本、低功耗、小体积等诸多优点,是一种低价格、高性能的传输解决方案,现在已经广泛应用于城域网传输。
CWDM is a good way to save optical resource and capital of networking. It solved the problems of shortage of fiber and multi-business transparent transmission. This technique is mainly used in metropolitan area network and access layer which can shorten the of constructing network and doing business. CWDM is wildly used in WAN for its low cost, low power dissipation,small size and other priorities. It is a cheap and efficient transmission solution.
应用范围
宽带波分复用系统     Broad band WDM system
城域网光纤           WAN fiber
CATV系统            CATV system
性能参数

型号type SUN-CWDM
参数 parameter 指标 index
信道数 tunnel λ 2 3 4 5 6 7 8 9
最大插入损耗
Max insertion loss
dB 0.8 1.0 1.4 1.8 2.2 2.6 3.0 3.4
常规中心波长
Normal center wavelength
nm 1310.1470.1490.1510.1530.1550.1570.1590.1610
通带宽度
Tunnel width
nm ±6.5   ≥≤℃λ
通带平坦度 tunnel flatness dB ≤0.5
相邻信道隔离度
Adjacent channel isolation
dB ≥30
非邻信道隔离度
Non- Adjacent channel isolation
dB ≥45
波长热稳定度
Wavelength heat stability
nm/℃ ≤0.002
插入损耗热稳定度
Insertion loss heat stability
dB/℃ ≤0.005 ≤0.005 ≤0.007 ≤0.008
回拨损耗 return loss dB ≥45
偏振膜色散
Polarizing coating
ps ≤0.01 ≤0.10 ≤0.15 ≤0.15
偏振相关损耗
Polarizing dependent loss
dB ≤0.01 ≤0.10 ≤0.15 ≤0.15
方向性 directivity dB ≥50
最大通光功率 max power mW 500
工作温度
Operating temperature
-20-+70
储存温度storage temperature -40-+85
封装尺寸 dimension mm 100*80*10.5
备注 可根据要求订购1270 1610的18个波分模块或根据要求生产机架式波分设备
The wavelength division modules of 1270 1610 and other can be ordered according to the requirements.
