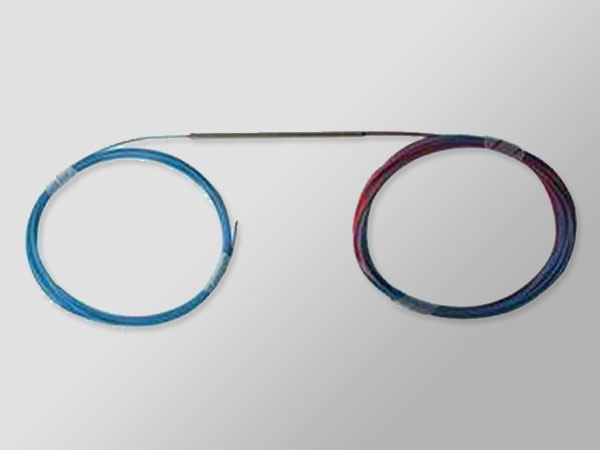

拉锥式WDM

产品特点
低损耗               Low loss
低偏振敏感           Low polarization dependent loss
抗环境变化           environmental changeability resistance
PWDM-T155 OR 1310/1490用于光模块的封装,可实现1550,1490/1310两通信窗光信号的合波(复用)与分波(解复用),使单根光纤传输容量倍增,还可实现单纤双向通信,广泛应用于光纤网络升级、扩容或引入综合新业务(广播电视、电信、互联网三网合一PON+EOC)等方面。
PWDM-T1550 OR 1310/1490 is used for dimension of the module which can achieve the multiplexing and demultiplexing of two communication Window of 1550,1490 or 1310 wave signal that makes the makes the capacity doubles of single fiber and can achieve transferring in both directions on one fiber. It is wildly used in upgrading of optical network, enlarge capacity and lead in new business such as radio and television,Telecom,Internet and PON plus EOC.
应用范围
光纤通信系统         optical communication system
局域网               LAN
CATV                 CATV
光纤传感器           Optical sensor
测量仪器             Measuring apparatus
性能参数

工作波长
operating wavelength
  1310/1550 980/1550
带宽 width   ±20 ±20
最大插入损耗
Max insertion loss
dB 0.3 0.3
最小带宽隔离度
Minimum bandwith isolation
dB 17 18
最小峰值隔离度
Minimum peak value isolation
dB ≥23 ≥25
偏振敏感损耗
Polarization dependent loss
dB ≤0.1 ≤0.1
温度稳定性 temperature stability dB ≤0.002
方向性 directivity dB ≥55
封装尺寸 dimension mm A:3.0*56或客户定制尺寸
A:3.0*56 or ordered by clients
工作温度 operation temperature -20-+70
储存温度 storage temperature -40-+85
尾纤长度 pigtail length m 1m或客户指定
1m or ordered by clients
