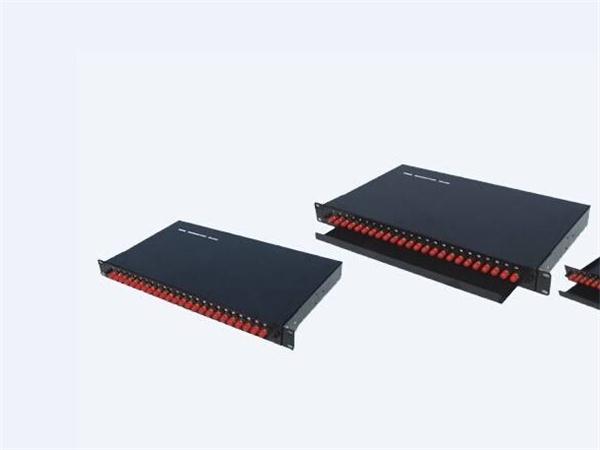

机架式光缆终端盒

产品介绍
机架式光缆终端盒主要用于光缆终端的固定,光缆与尾纤的熔接及余纤的收容和保护。终端盒通常安装在19英寸机架上,可以容纳光缆端头的数量比较多,实际应用时也可作室内接头盒用。本产品适用于光缆进入机房后,光缆尾部与终端机架通过尾纤活动连接器的接续,也可用于光缆进机房后的分歧接续。
The rack-mounted optical fiber termination box is mainly used to fixed the terminal of optical fiber,spliced the optical fiber and pigtail as well as collect and protect fiber margin. the box is always installed on the 19inches frame which could accommodate a comparatively bigger number of fiber. In practical use, it can also take the position of indoor connection box. The box should apply to the connection the tail of the optical cable and the terminal frame through the optical fiber connector, or the divergent connect after the cable was brought into the machine room.
技术参数
光学性能:连接器插损(包括插入互换和重复)
Optical property: the insertion loss of connector (including insertion,exchange and repetition)
回波损耗:PC40dB,UPC50dB,APC60dB.
Return loss:PC40dB,UPC50dB,APC60dB.
绝缘电阻:1000M/500V(DC)
Insulation resistance:1000M/500V(DC)
耐电压:3000V/ min,不击穿,无飞弧。
Voltage resistance:3000V/ min, no spark-over and flying arc.
光缆、光纤存储半径大于45mm.
Radius of storage of optical cable and optical fiber is over 45mm.
性能参数

产品名称Name 型号type 规格specification 外形尺寸dimension 备注note
光缆终端盒 GPZ07-1 1-48芯(cores) 330*185*65 室内 indoor
GPZ07-2 1-24芯(cores) 300*120*46 室内 indoor
GPZ07-3 1-8芯(cores) 155*90*25 室内 indoor
GPZ07-4 1-24芯(cores) 300*130*40 网络型network model
法兰式光缆终端盒 GPZ07-5 1-12芯(cores) 212*114*36 装法兰installed flange plate
机架式光缆终端盒 GPZ07-6 1-24芯(cores) 430*250*44 安装于19英寸机架上
19-inches rock
GPZ07-7 1-48芯(cores) 430*250*88 安装于19英寸机架上
19-inches rock
