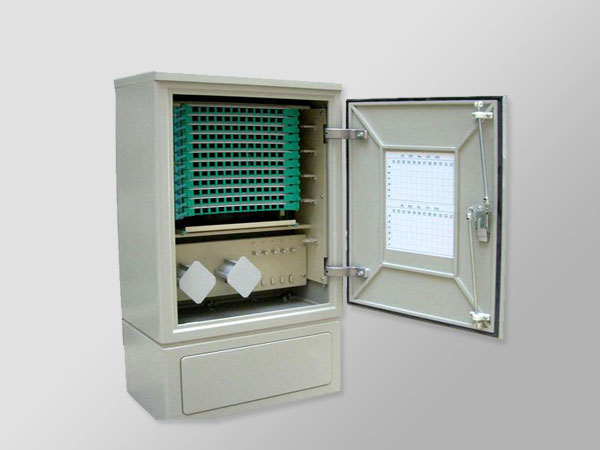

无(免)跳接光缆交接箱144芯

产品介绍
无跳接光缆交接箱有效的解决了传统光缆配纤设备存在的弊端,减少配纤适配器和跳纤,减少交通故障点和插损,提升网络安全,增大了设备的容量,便于线路的管理与扩容,降低了工程建设成本,并促进了全光网络的发展。
The cable box without jump can effectively solve the problems existing in the traditional fiber optical cable,reduce the communication failure point and insertion loss,improve the network security,increase the capacity of the equipment,improve the management and expansion,reduce the project construction,and promote the development of all optical network.
用途
无跳接光缆交接箱适用于PON技术FTTH光纤接入网络,其可以实现光纤的熔接、存储、端接,光分路器的安置以及入户光缆的布放等功能。
No jumper cable transfer box for PON FTTH Optical Access Network,which may be fiber fusion welding,storing,termination,light splitter placement and a cable laying and other functions.
产品特点
1.   减少适配器的跳纤,减少故障点和插损,提升网络安全解决光分路器的管理与扩容;
2.   配备有序的尾纤管理中心,界面清晰:增加了光分单元,满足光纤点对点,点对多点综合发展需求,全面模块化的设计,按需配置,应用灵活,降低成本。
3.   箱体采用SMC箱体或不锈钢箱体,SMC箱体抗腐蚀性强,箱体模块化设计,制造成本低;不锈钢箱体美观大方,机械性能好。
4.   外缆熔接区托盘分上下两层,上层为熔接区,下层为储存区,通道设计合理,保证光纤在托盘内满足弯曲半径。
5.   光分安置区采用插片式光分路器的安装方式,能满足各种外形盒式光分路器的安装要求,即插即用,安装拆卸方便,便于施工和维护。
1.   reduce the communication failure point and insertion loss,enhance network security management and solve the expansion of optical splitter;
2.   equipped with orderly pigtail management center,the interface is clear: increase the light units to meet the fiber point to point,to more comprehensive development demand,modularization design,on-demand provisioning,flexible application,reduce the cost.
3.   The box body adopts SMC box or stainless steel box,SMC box,anticorrosive,the box is modular design,manufacturing cost is low;the stainless steel box is beautiful,the mechanical performance is good.
4.   The outer cable welding zone tray is divided into upper and lower two layers,the upper layer is the weld zone,the lower layer is the storage area,the channel design is reasonable,and the fiber can meet the bending radius in the tray.
5.   A light resettlement area used in chip optical splitter is installed,can meet the installation requirements of various shape box light splitter,namely in used,installation and disassembly are convenient,convenient construction and maintenance.

型号
Model
外形尺寸(mm)Dimensions
(高*宽*深)(Wide*high*depth)
备注
Remarks
GXF65-144A 1035*560*310 SMC箱体含底座尺寸
SMC box containing base size
装标准插片式分路器
Install standard insert splitter
GXF65-144A 760*560*310 SMC箱体含底座尺寸
SMC box containing base size
装标准插片式分路器
Install standard insert splitter
GXF65-144B 1080*600*330 不锈钢箱体含底座尺寸
Stainless steel box with base size
装标准插片式分路器
Install standard insert splitter

主要技术参数
工作温度范围:-40℃~+60℃;
相对湿度:≤95%(+40℃时)
大气压力:70kpa~106kpa
耐压性能:光缆高压接地装置与箱体金工件之间的耐电压不小于3000V(Dc)/1min。不击穿,无飞弧。
绝缘性能:光缆高压接地装置与箱体金工件之间的绝缘电阻不小于2*104MΩ/500V(DC);
非金属材料的阻燃性能:符合GB5169.7要求;
连接器衰减(插入、互换、重复)≤0.2dB;
回波损耗:APC型≥65dB;UPC型≥50dB
PC型≥45dB
Working temperature range:40 to +60
Relative humidity: less than 95%(+40 degrees)
Atmospheric pressure:70kpa~106kpa
Performance:high pressure cable between the grounding device and the high voltage box machine is not less than 3000V(Dc)/1min.no breakdown,no fly arc.
Insulation:high voltage cable between the grounding device and the metal box insulation resistance is no less than 2*104MΩ/500V(DC);
Non metallic materials of flame retardant properties:GB5169.7 requirements
Connector attenuation(insertion,swap,repeat)less than 0.2dB;
Return loss :APC=65dB;UPC=50dB;PC=45d
