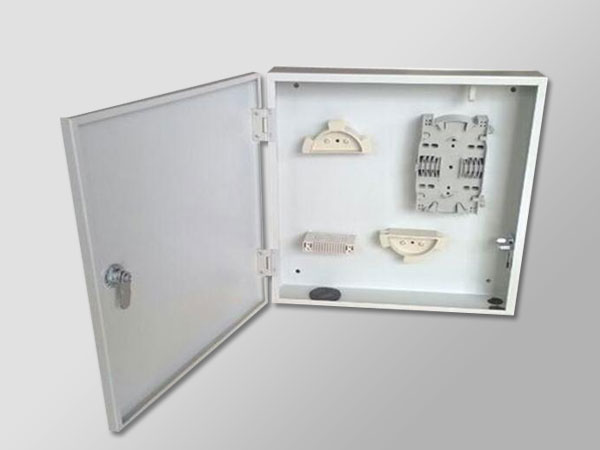

光纤配线箱

产品介绍
材料选用优质冷轧钢板及表面静电喷塑,外形美观
The shell is high intensified and insulated material, thus having excellent mechanic performance and it is solid and durable.
配置正面门板
Deploys face and side doors
采用进口锁扣
Adopting import lock
条形适配器面板,可安装FC、SC、ST面板
Piece adapter panel can fix FC、SC、ST.
设置加强芯及光缆固定座.
Setup strength cores and fiber root seat.
性能优势
密封性能好
Perfect and reliable sealing operations
集光纤的熔接、盘储、配线三种功能于一体
Setting optical fiber fusion, disk storage, wiring three function in one
配置灵活、安装快捷
Flexible configuration and quick installation
方便操作
Easy to operation
接地可靠,保护安全
Reliable grounding and safe protection
全程保护跳线,保证弯曲半径≥40mm
Guarantee the curvature radius≥40mm
适用范围广
Wide range of practice
操作、维护方便、快捷
Simple installation and maintenance
应用范围
Applications
光纤接入网中对光纤进行终接、保护、分配及灵活调配.
In fiber access, it is designated for fiber termination, protection and distribution.
分配及灵活调配
Distribution and flexible deployment.
性能参数

产品名称 Name 型号 type 规格 specification 外形尺寸 dimension
室内光纤配线箱 GPX07-C型 1-24芯(cores) 350*350*60
1-48芯(cores) 350*350*100
1-72芯(cores) 550*400*100
1-108芯(cores) 550*400*145
室外光纤配线箱 GPX07-CSW型 1-24芯(cores) 350*350*80
1-48芯(cores) 350*350*120
